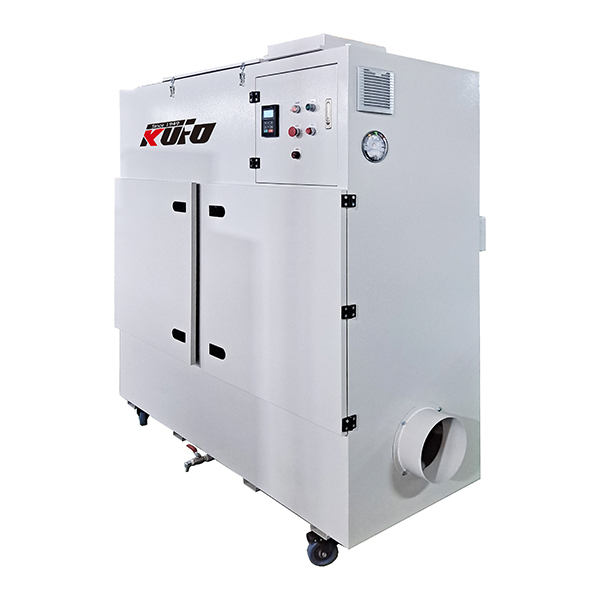

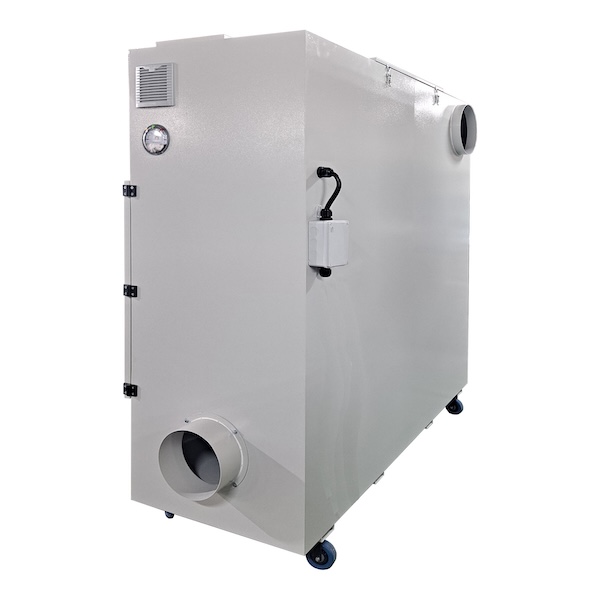

Oil Mist Collector and Deodorizer
- Designed to remove oil mist and smoke from high-speed CNC lathes and grinders.

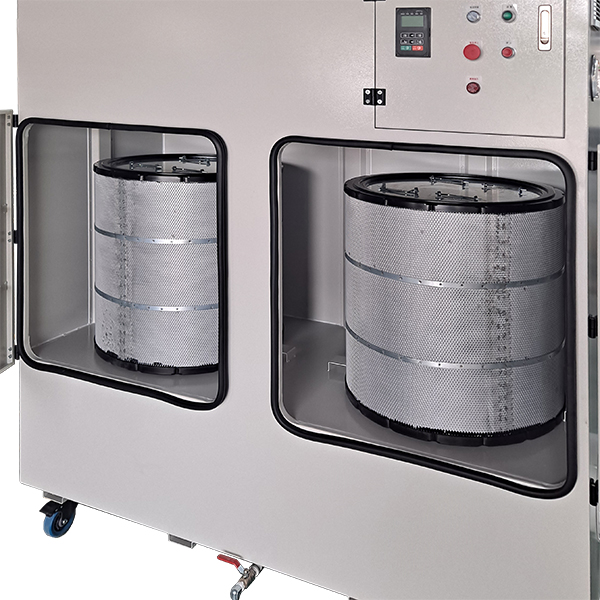

- It features activated carbon filters to remove odors.
- Air speed controller to slow the airflow, ensuring the air stays in the carbon filter long enough to completely neutralize odors.
- An ideal centralized system for multiple machines in a single workshop.
| Model | UAFM-72 | UAFM-52 |
|---|---|---|
| Motor | 7.5HP/2P/60HZ | 5HP/2P/60HZ |
| Air Volume | 100CMM(max) | 80CMM(max) |
| Static pressure | 3,500pa(max) | 3,500pa(max) |
| Inlet diameter | D300mm | D250mm |
* All specifications, dimensions and design characteristics are subject to change without notice.
